Bug: Checkout URL only shows 1 item after draftOrderUpdate via Flow

Shopify Flow
1

Hi all,

I’m running into a strange issue when using Shopify Flow with the Admin API. After updating a draft order’s line items via draftOrderUpdate, the checkout URL only displays one item, even though the draft order contains multiple line items.

Steps to reproduce:

  1. Create a Flow triggered by “Draft order created”, and add a “Send Admin API request” action
  2. In the API request, I’m using draftOrderUpdate mutation to add custom attributes to each line item. Here’s the JSON I’m using:
{
  "id": "{{draftOrder.id}}",
  "input": {
    "lineItems": [
      {% for line in draftOrder.lineItems %}
      {
          "customAttributes": [
              {
                "key": "_custom_id",
                "value": "{{ line.id }}"
              }
          ],
          "quantity": {{ line.quantity }},
          "requiresShipping": true,
          "sku": "{{ line.variant.sku }}",
          "taxable": true,
          "title": "{{ line.title }}",
          "variantId": "{{ line.variant.id }}",
          "weight": {
            "value": {{ line.weight.value }},
            "unit": "{{ line.weight.unit }}"
          },
          "uuid": "{{ line.id }}"
        }
        {% unless forloop.last %},{% endunless %}
      {% endfor %}
    ]
  }
}
  1. Create a draft order with multiple line items and trigger the Flow (manually or automatically).
  2. Ensure that Flow has updated the line items

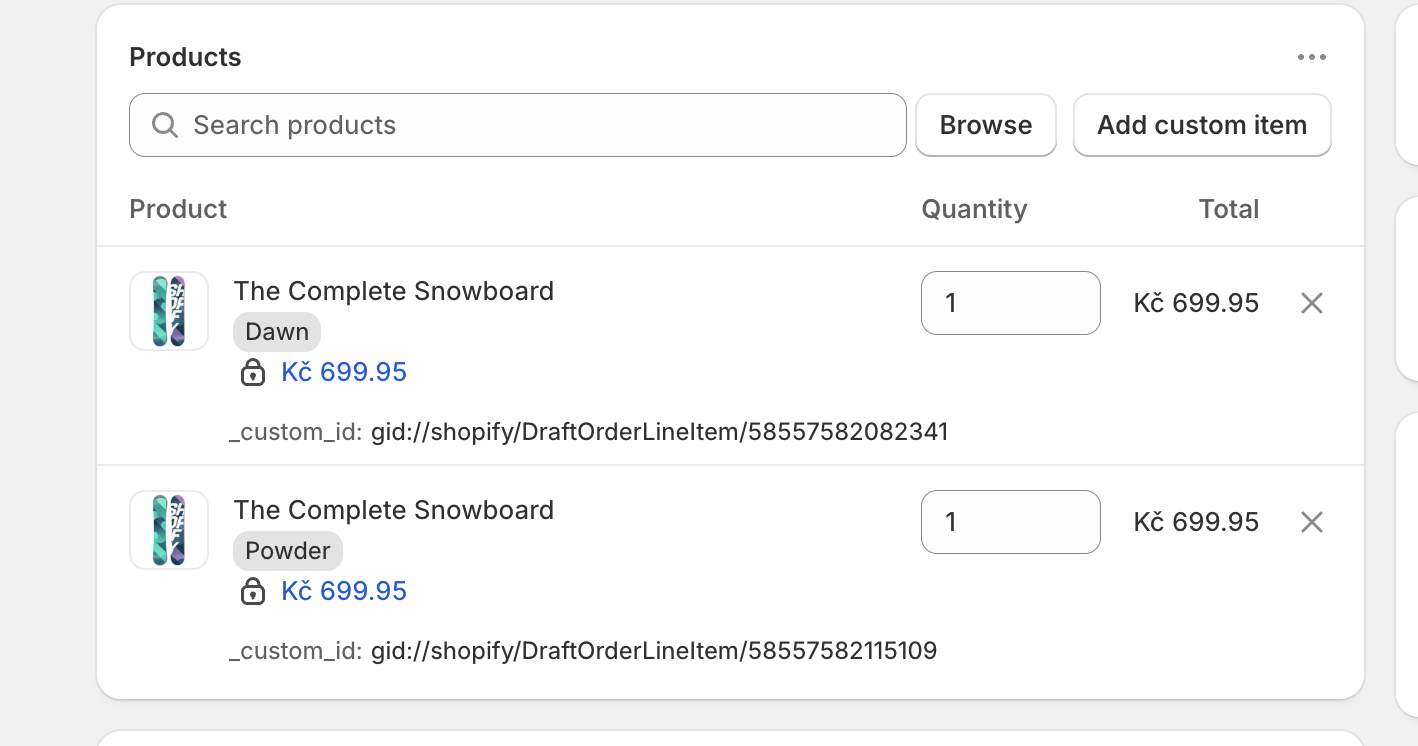

    image1418×746 75.7 KB
  3. click “Share” on the draft order to get the checkout URL

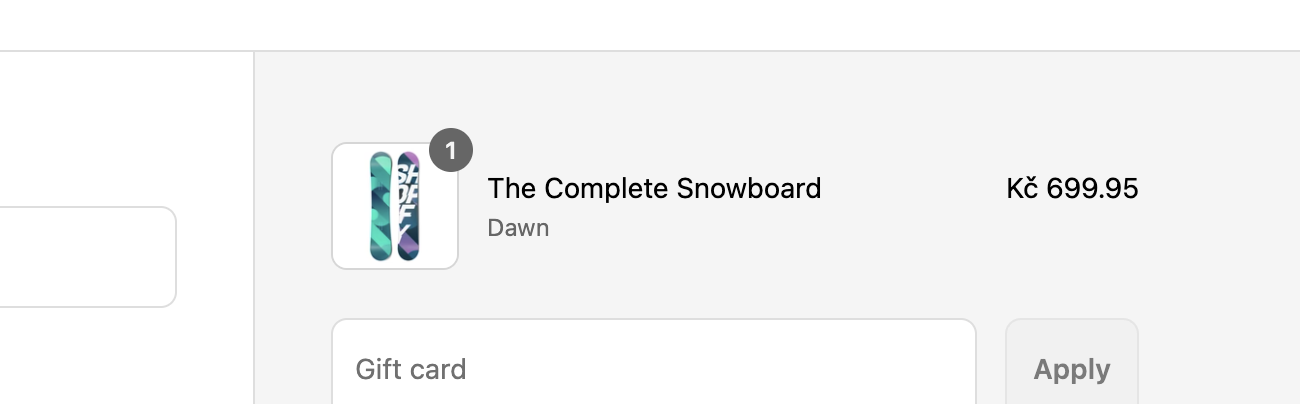

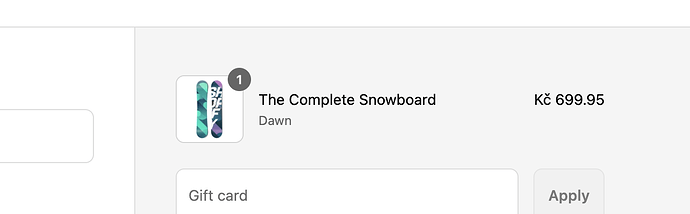

  4. Open the checkout URL, only one item shows in the cart.
    image1300×404 26.4 KB

Notes:

  • If I disable Flow - so the draft order is unedited, the checkout URL shows all items correctly.

Am I doing something wrong or is this a bug?

Any insight would be appreciated. Many thanks!

2

Moving this to the Flow board as the folks there might be able to help troubleshoot this further.

3

Hi Liam, it’s not just a Flow issue, I believe it’s actually related to the Admin API. I initially demonstrated the problem using Flow, but the same issue occurs when I run the mutation directly via GraphQL app.

4

Hi! Would someone be able to help me with this request?
